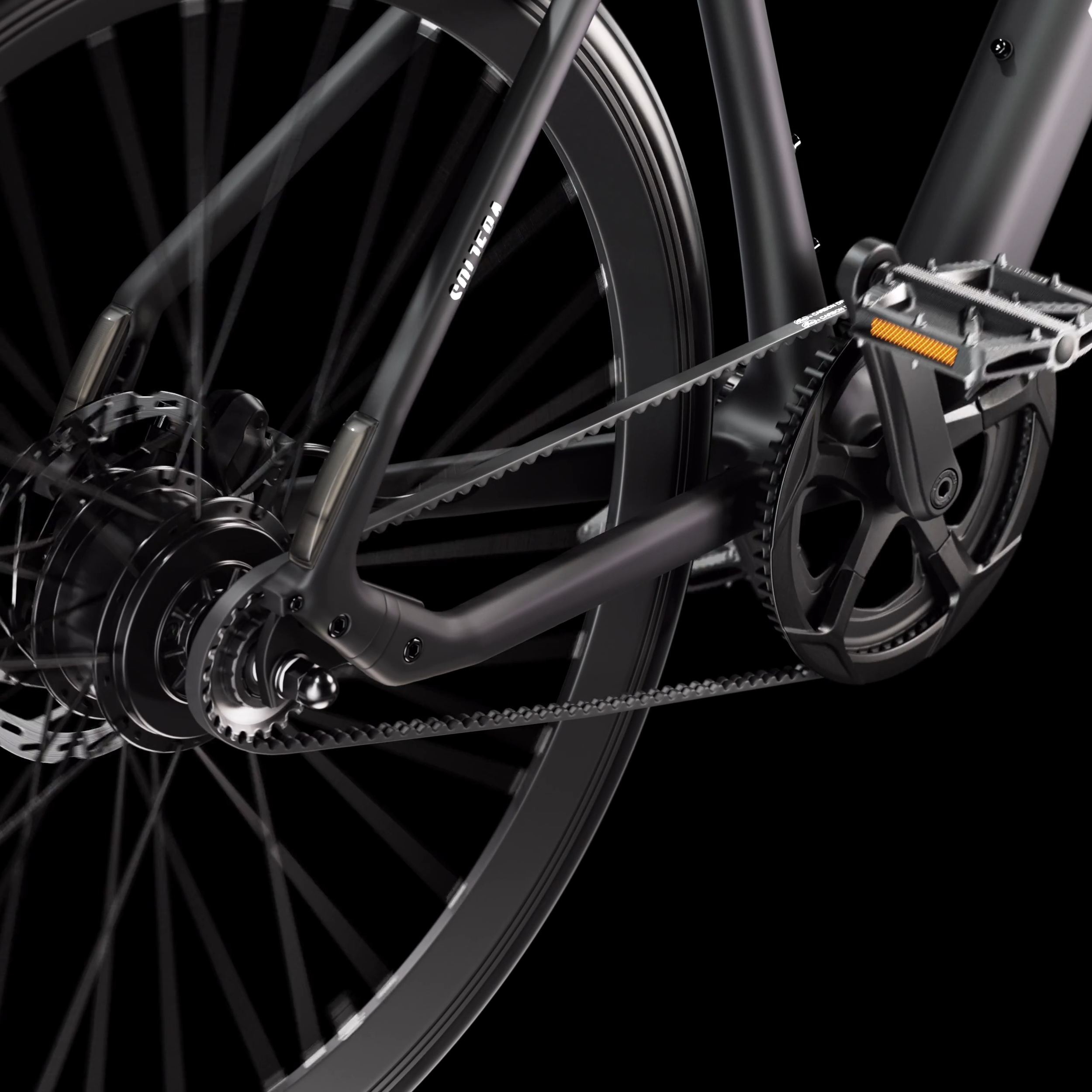

Gates Carbon Belt Drive
Clean, Quiet, and Maintenance-Free. Unlike traditional chains, the Gates Carbon Belt Drive system doesn’t require lubrication, won’t rust, and will last 2-3 times longer than a traditional chain drivetrain.

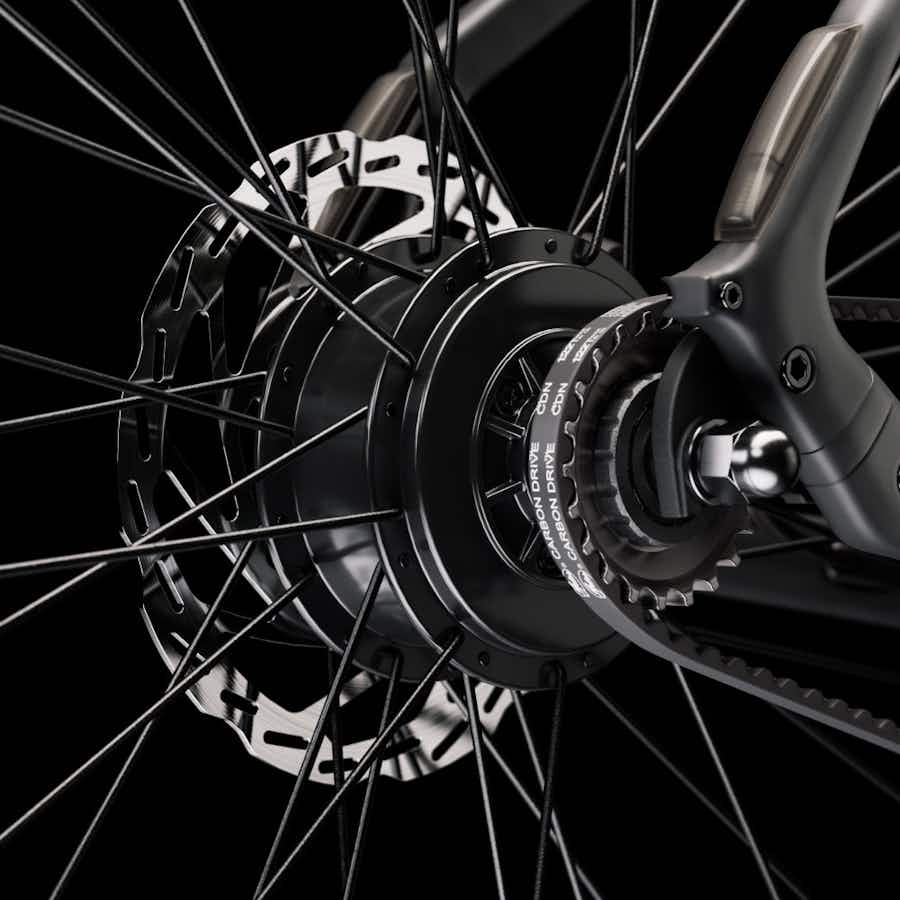

Single Speed
The single speed drivetrain offers ultimate simplicity and low maintenance riding. No shifters, derailleurs, cables, or adjustments. Just hop on and go.

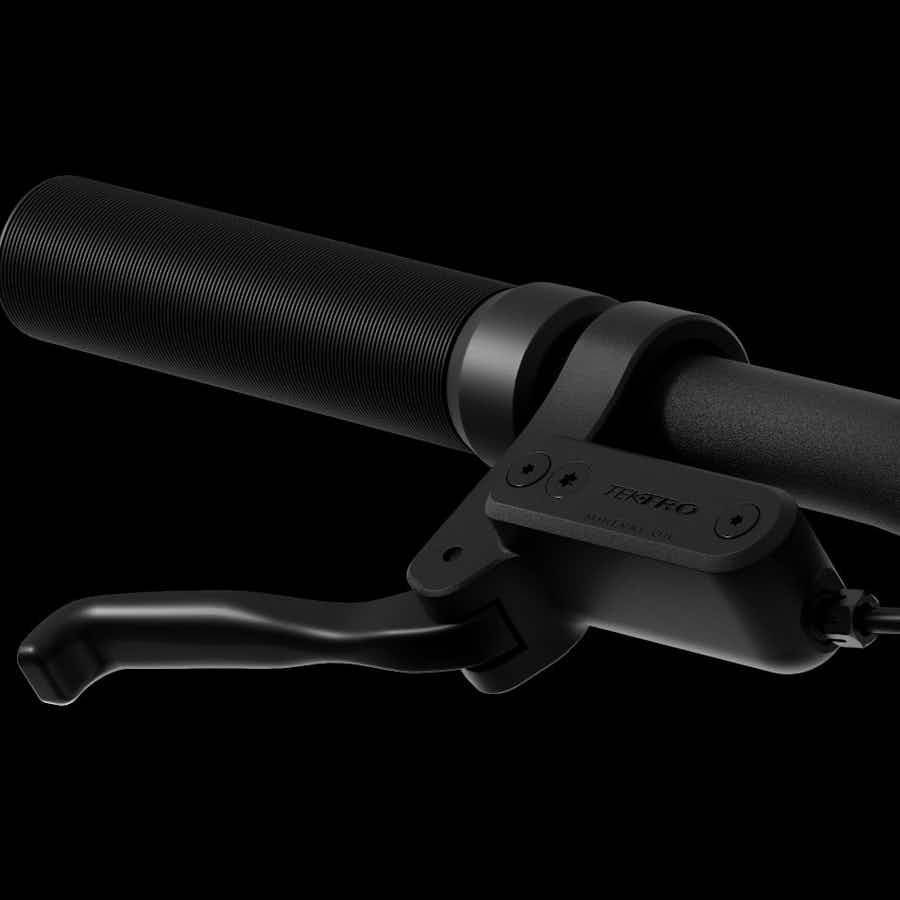

Hydraulic Disc Brakes
Enjoy a safer, more confident ride with the superior stopping power, improved modulation, and lower maintenance offered by hydraulic disk brakes.
Integrated Lights w/ Turn Signals
Integrated front and rear lights allow you to see and be seen on all your two-wheeled adventures. Built in turn signals give you the ability to safely navigate city streets and communicate with surrounding road users.
General Info
Model: Soltera 3 ADV Ebike
Weight:37lbs
Total Weight Limit: 300 lbs
Rider Height: S 5'1"-5'5", M 5'5"-5'9", L 5'9"-6'1", XL 5'1"-6'4"
Water Resistance: IPX6
Range: Up to 70 Miles
Bike Safety Certifications: TUV Certified
Battery Safety Certifications: TUV Certified
Ideal Use: Urban Riding
Frameset
Frame: 6061 Double-Butted Aluminum Alloy with Internal Battery
Fork: Rigid Aluminum Fork
Rear Spacing: 142mm
Fork Spacing: 100mm
Frame Style: Step-Over
Wheelset
Front Wheel: 700c, 32-spoke, Double Wall Aluminum Rim, Thru Axle
Rear Wheel: 700c, 36-spoke, Double Wall Aluminum Rim, Nutted Hub Drive Motor
Tires: Kenda K1085 700x38C
Ebike System
Speed: Class 1
Motor: 36v, 250W
Motor Torque: 40Nm
Display: Aventon BC147
Battery: Integrated Lithium-ion 36.9V, 9.94Ah, 366.8Wh
Battery Weight: 4.2lbs
Controller: 36v 15A
Throttle: N/A
Sensors: Double Sided Bottom Bracket Torque Sensor
Charger: 36V Output: 42V/ 4A
Charging time from 0% to 100%: 3-4 hours
Lights: Front and Rear Lights Integrated w/ Turn Signals
Brakes
Front Brake: Tektro HD-T3020 Hydraulic Disc Brake (w/o e-cutoff)
Rear Brake: Tektro HD-T3020 Hydraulic Disc Brake (w/o e-cutoff)
Front Brake Rotor: Tektro 180mm 6 bolt
Rear Brake Rotor: Tektro 180mm 6 bolt
Drivetrain
Drivetrain: Single Speed, Gates Carbon Belt Drive
Chainring: 60T
Hub Flywheel: 22T
Belt: Gates Carbon Belt Drive 122T CDN
Chainring BCD: 130
Crankset: 3pc, 165mm crank arm
Bottom Bracket: Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Pedals: 9/16" Composite Platform
Cockpit
Saddle: Aventon Saddle
Seatpost: Aventon 27.2
Seatpost Clamp: 31.8mm
Handlebars: Aluminum 31.8mm, 680mm
Stem: 31.8mm, 70mm Length, 15°
Grips: Aventon Lock on grips
Headset: Aventon headset with integrated cable routing
Included Accessories
Kickstand: Included in accessory box
Technical Overview
Soltera 3 ADV ships as a Class 1 ebike and is not throttle compatible. This bike is equipped with a Gates Belt Drive system that eliminates issues such as chain stretch and usual wear. Belt drive systems typically last 2-3 times as long as traditional chains and cogs. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof - Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components. *Max range determined using PAS Eco on flat terrain and a 160lb rider.
