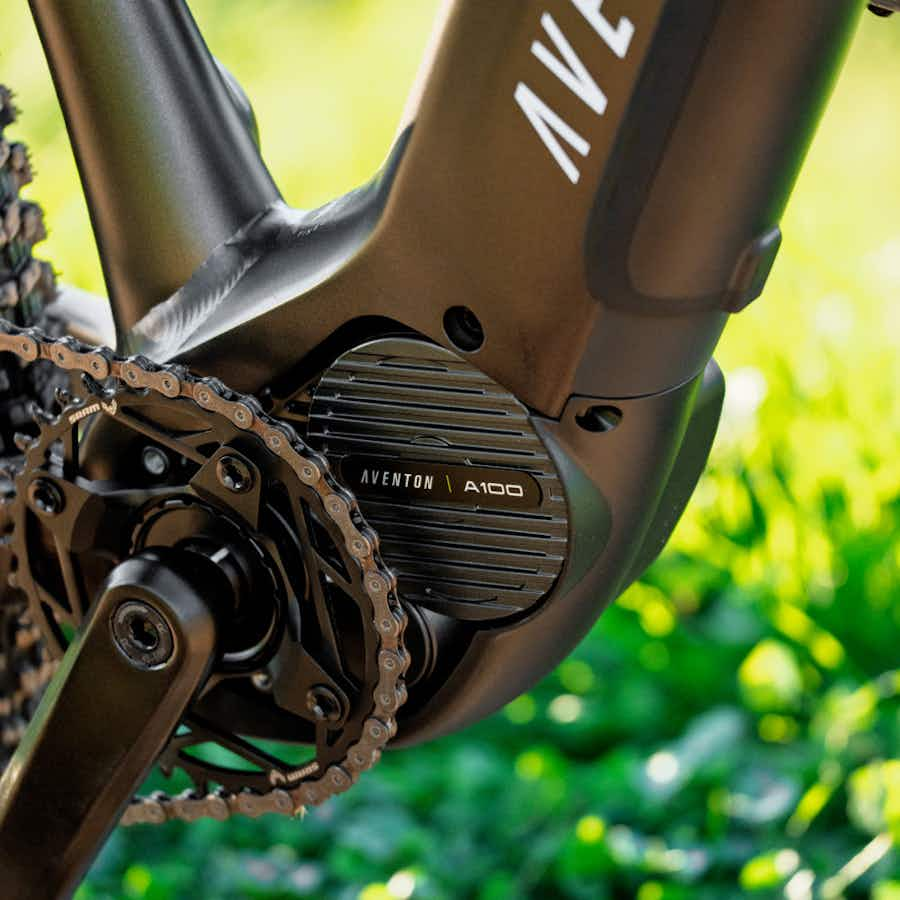

A100 Mid Drive Motor
The A100 mid-drive motor is engineered to enhance your ride with confident and capable motor assistance. With 750W of peak power and a max torque of 100Nm, the A100 is the heart of the Ramblas ADV, enabling you to crush climbs and power through trails with ease.

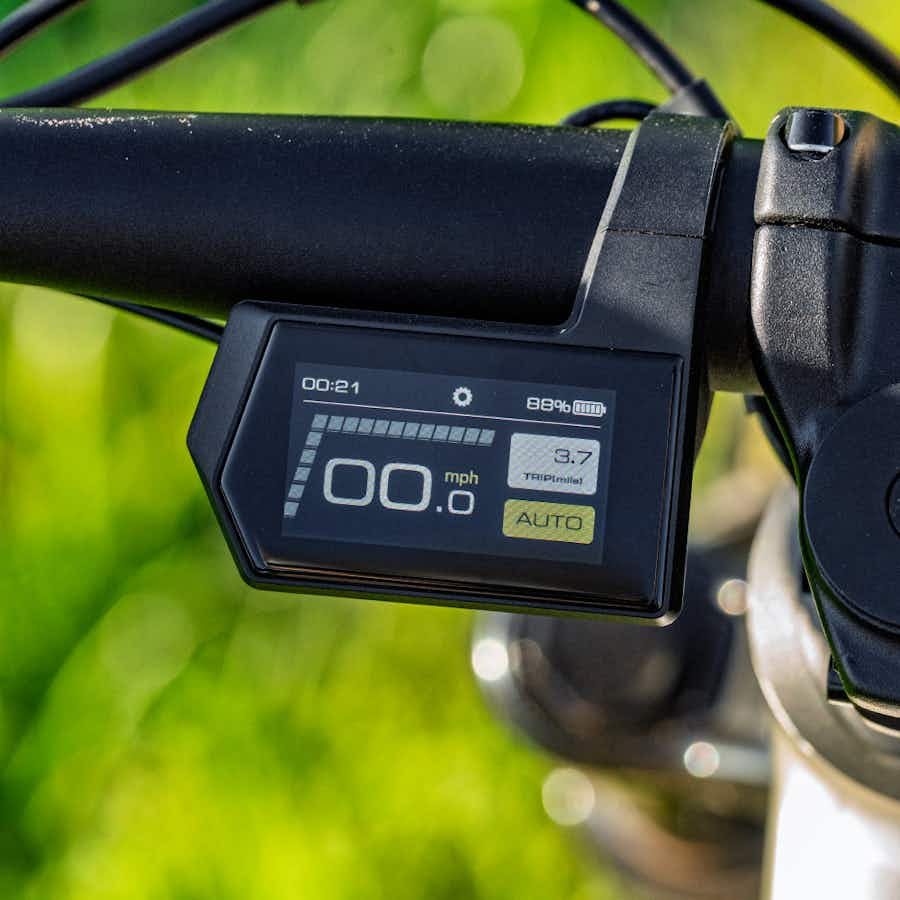

AUTO Mode
No need to switch between pedal assist modes, simply switch to AUTO mode and let the Ramblas ADV supply the perfect amount of power based on the slope of terrain you're riding. Take advantage of all 100Nm on steep climbs, and automatically dial back the output on flatter sections of trail or road.

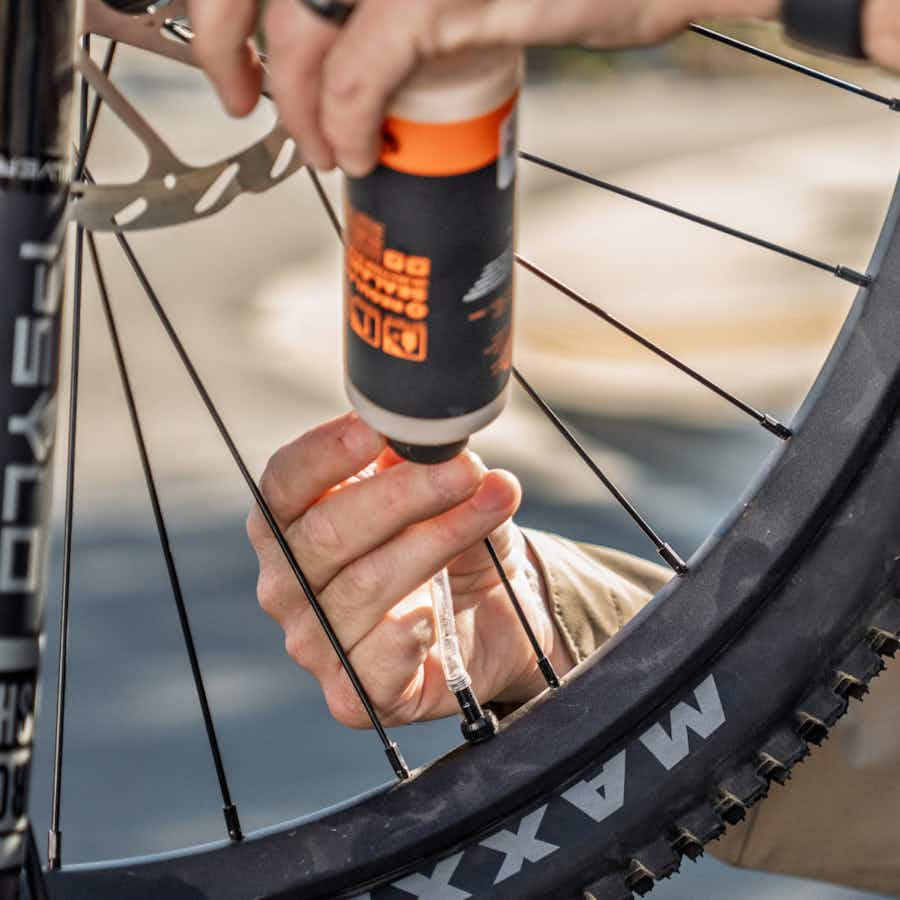

Tubeless Compatible Wheels and Tires
Tubeless wheels and tires provide better flat protection, and allow riders to run lower tire pressures for improved traction and comfort and trails.

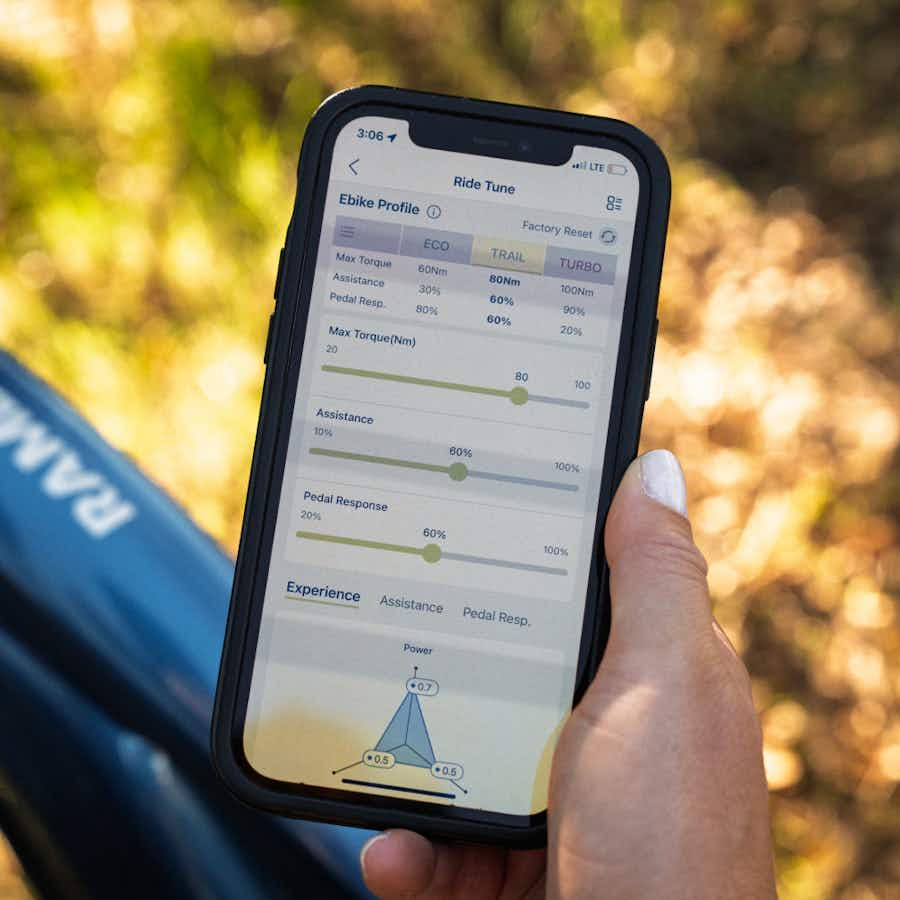

Ride Tune Customization
Ramblas ADV allows you to fine tune each of your pedal assist modes (ECO, TRAIL, TURBO) for a customized ride feel that fits your style and preferences

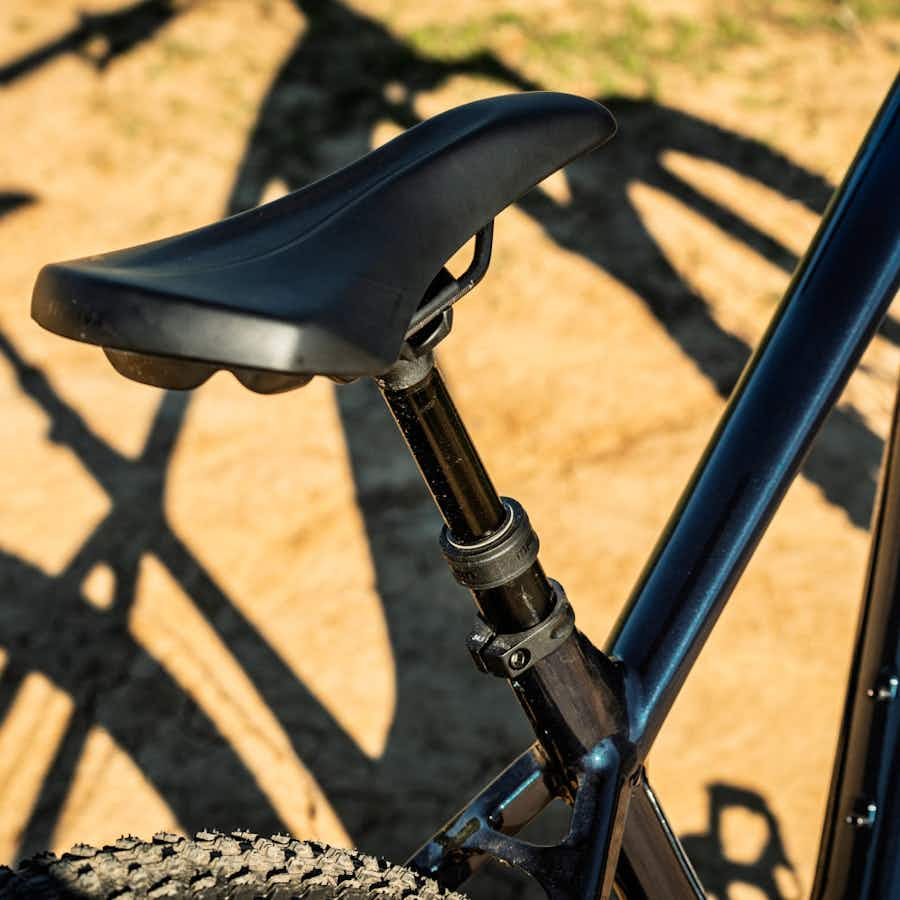

Dropper Seatpost
The updated dropper seatpost offers improved lever actuation and enhances control while navigating steep and technical terrain.

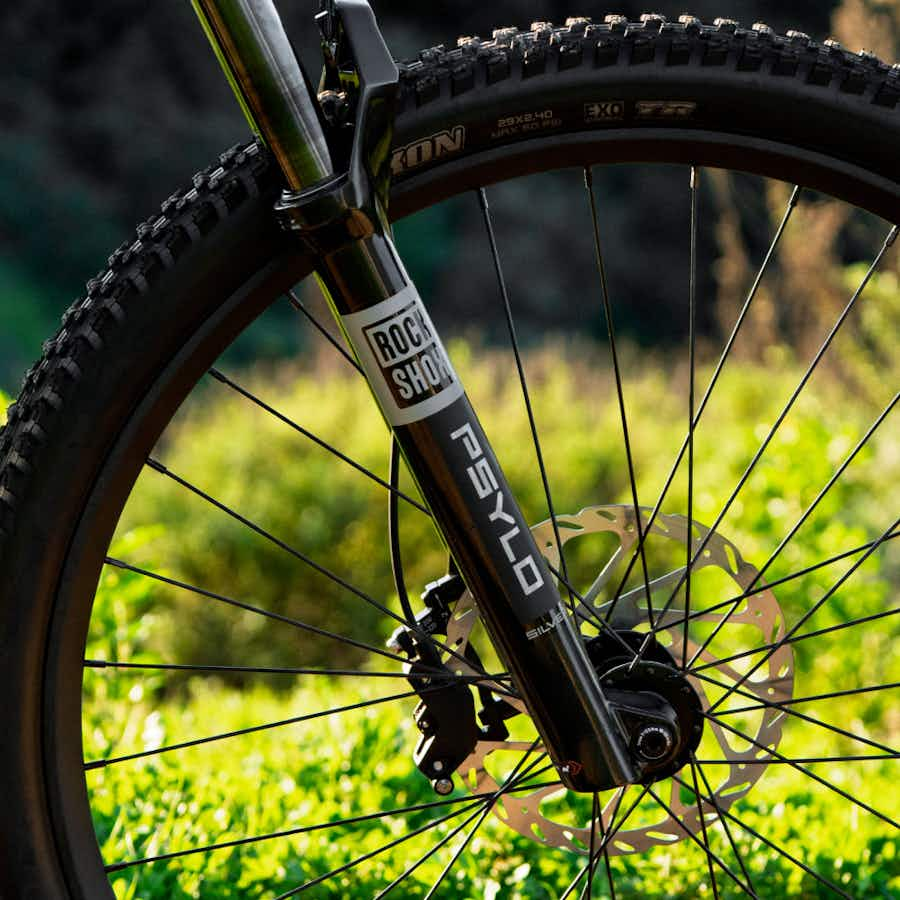

RockShox Psylo Silver Fork
Ramblas' RockShox Psylo coil fork has 130mm of travel for comfort and capability on all your trail adventures.
General Info
Model: Ramblas ADV Ebike
Weight: 54 lbs
Total Weight Limit: 300 lbs
Rider Height: 5'5" - 6'5"
Box Size: 59 x 13 x 36
Water Resistance: Bike - IPX6 // Motor - IP67
Range: Up to 90 miles
Bike Safety Certifications: TUV Certified in accordance with UL 2849 / UL 2271
Battery Safety Certifications: TUV Certified in accordance with UL 2849 / UL 2271
Frameset
Frame: 6061 Single-Butted Aluminum Alloy
Fork: Rockshox Psylo Silver R, 35mm Stanchions, coil, 44mm offset, 15x110mm BOOST, 1.5"tapered steerer tube, Rebound adjust
Rear Spacing: 12x148mm
Fork Spacing: 15x110mm
Wheelset
Rear Wheel: 29in, 32hole, BOOST Thru Axle, Presta Valve, Tubeless Ready
Front Wheel: 29in, 32hole, BOOST Thru Axle, Presta Valve, Tubeless Ready
Tires: Maxxis Rekon 29"x2.4" Tubeless Ready
Ebike System
Speed: Class 1
Motor: Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
Motor Torque: 100Nm
Motor Power: 250W (750W Peak)
Display: Aventon BC201
Battery: Aventon 708 WH. 36V LG 21700 cells
Battery Weight: 8.44 lbs
Throttle: N/A
Sensors: Double Sided Torque Sensor Integrated in Motor
Charger: 42V 4A charger
Charging time from 0% to 100%: 5 hours
Lights: Integrated
Brakes
Front Brake: SRAM DB6 4-Piston Hydraulic Disc Brakes
Rear Brake: SRAM DB6 4-Piston Hydraulic Disc Brakes
Rear Brake Rotor: SRAM G2 200mm
Front Brake Rotor: SRAM G2 200mm
Drivetrain
Rear Derailleur: SRAM NX 12-Speed
Shifter: SRAM NX
Chain: SRAM 12-Speed
Cassette: SRAM SX 12-Speed 10-50T
Chainring: SRAM 34T
Chainring BCD: 104
Crankset: 165mm ISIS Splined
Bottom Bracket: N/A
Pedals: 9/16" Alloy Platform
Cockpit
Saddle: Aventon Saddle
Seatpost: Manic LC 150mm travel for size M-XL. 31.6mm ø. 395mm length
Seatpost Clamp: 34.9mm
Handlebars: 760mm width, 35mm clamp diameter, 33mm rise, 3* upsweep, 9* backsweep.
Grips: Aventon Lock on grips
Headset: T51Ks 28.6*56-56*39.8/ H:23.4mm
Included Accessories
Kickstand: Included in accessory box
Lights: Lights: Included
Technical Overview
Ramblas comes out of the box as a Class I ebike, with pedal assist. The bike is adjustable to Class 3 in the Aventon MyRide app and is not throttle compatible. The bike is rated at an IP67 waterproof rating, meaning it can be fully submerged for short periods of time.
