Pace 4

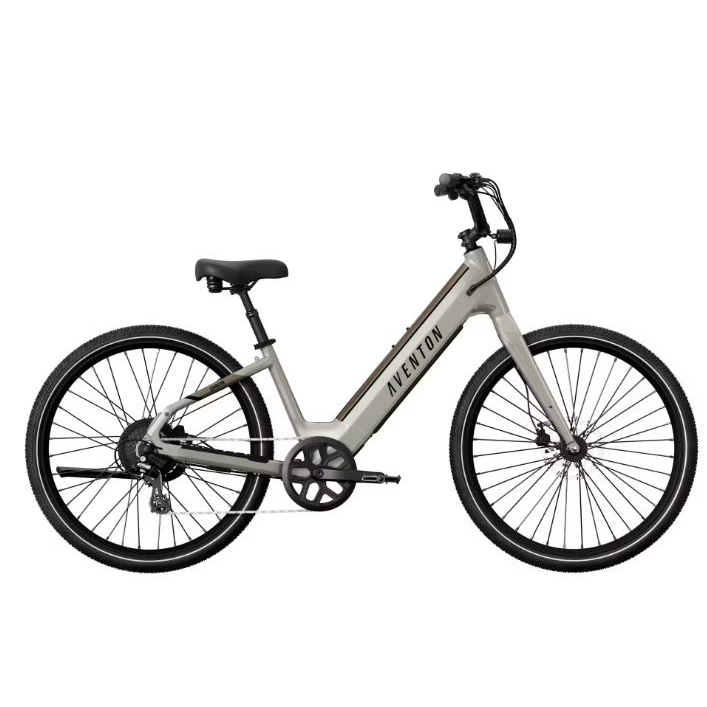

Pace 4 Step Through Ebike
The Aventon Pace 4 is the next-generation cruiser you've been waiting for. It combines smart bike technology, comfortable frame geometry, and enhanced touchpoints to maximize fun on every ride. Designed for those looking to get around town, go for a ride along the beach, or simply rediscover their local neighborhood on two wheels, the Pace is ready to cruise. Thanks to its 500W of motor power paired with torque sensor technology, Pace 4 is ready to elevate all of your weekend rides, while the 3 customizable levels of pedal assist allow you to fine tune the bikes behavior to match your riding style and preferences. With added security features like GPS tracking, unusual activity detection, rear wheel lock, and much more, Pace 4 gives you peace of mind knowing your bike is always secure so you can focus solely on the fun ahead. Get ready to cruise, with the all new Pace 4.
Pace 4 Step Through Ebike
The Aventon Pace 4 is the next-generation cruiser you've been waiting for. It combines smart bike technology, comfortable frame geometry, and enhanced touchpoints to maximize fun on every ride. Designed for those looking to get around town, go for a ride along the beach, or simply rediscover their local neighborhood on two wheels, the Pace is ready to cruise. Thanks to its 500W of motor power paired with torque sensor technology, Pace 4 is ready to elevate all of your weekend rides, while the 3 customizable levels of pedal assist allow you to fine tune the bikes behavior to match your riding style and preferences. With added security features like GPS tracking, unusual activity detection, rear wheel lock, and much more, Pace 4 gives you peace of mind knowing your bike is always secure so you can focus solely on the fun ahead. Get ready to cruise, with the all new Pace 4.
Enhanced Security meets Advanced Technology
The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock†, Geofencing† and Passcode safeguards your Pace 4 and deliver an ultimate peace of mind. When cruising, you can rely on GPS† tracking, 4G† connection and cloud synchronization to get your bike stats in real time.
Remote Lock and Geofencing
The smart remote locking† functionality lets you immobilize your bike right from the Aventon app. And the Geofencing† feature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control.

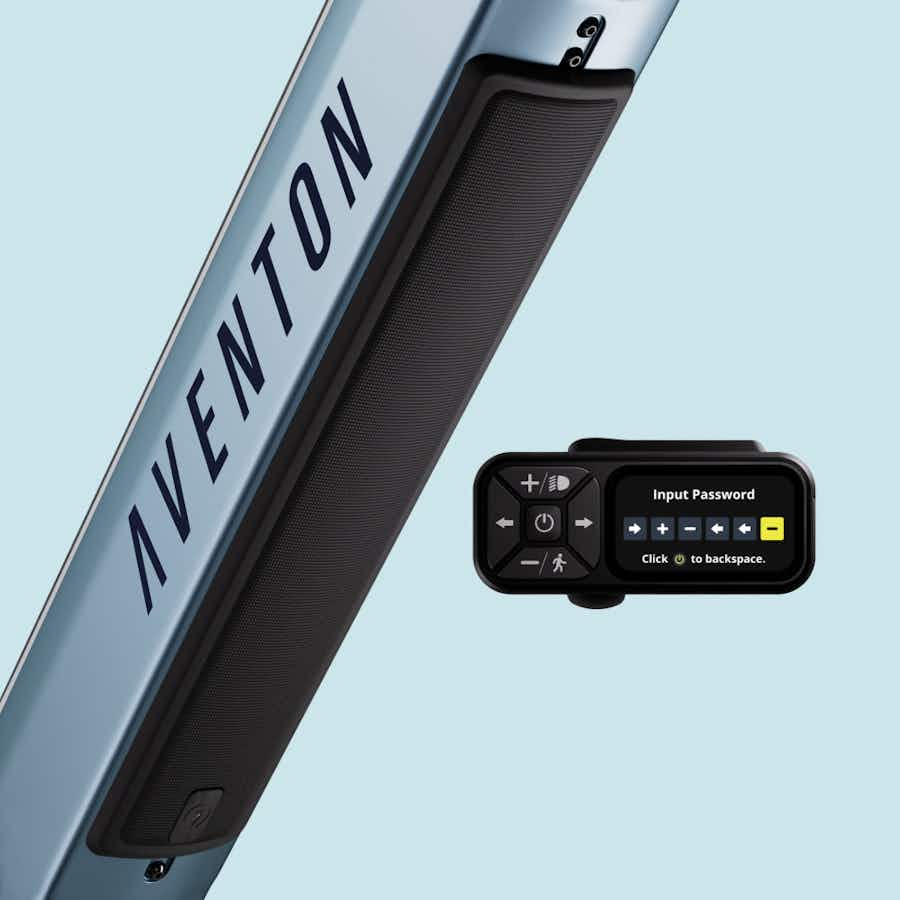

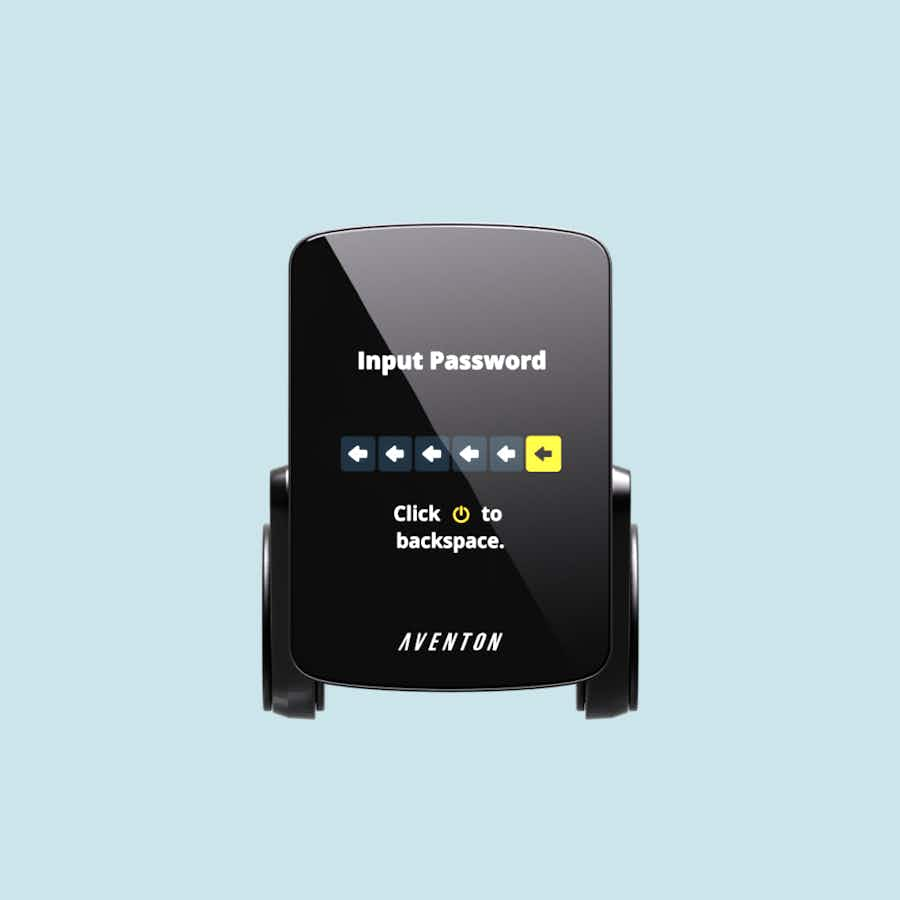

Startup Password and Keyless Battery
Customize your passcode and maximize your protection. Choose from up to six inputs and with the all-new Keyless Battery, there’s one less key on your ring, so you can just hop on and bop around.
Electronic Rear Wheel Lock
Easily activate a locking mechanism that restricts the rear wheel from rotating. This adds a layer of security when leaving your bike unattended.
Suspension Seatpost
The suspension seatpost with adjustable preload allows you to customize how your seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.
Ride Tune
Stay in perfect sync with your bike. Ride Tune lets you personalize your riding style via the Aventon App. Optimize and realize the full potential of your Pace 4.
Over the Air Updates
Stay in the know while on the go. Enjoy optimal performance with intelligent over-the-air software updates through the Aventon app. No need to plug in or stop at a shop. Ride on.
Pedal Assist and Throttle
Three customizable levels of pedal assist mean you're in charge of how much or how little electric assist you get from your ebike, while a throttle will propel you at speeds up to 20 MPH, keeping you moving when pedaling is just an afterthought!
General Info
Model: Pace 4 Step Through Ebike
Weight: 53 lbs
Total Weight Limit: 300 lbs
Rider Height: R: 4'11" -5'7" | L: 5'7" - 6'1"
Water Resistance: IPX4
Range: Up to 70 Miles
Ebike Class: Class 2 (Can be converted to Class 3 if local laws and regulations allow)
Battery Safety Certifications: Certified to UL 2271
Bike Safety Certifications: UL Safety Certified UL 2849
Frameset
Frame: 6061 Aluminum, Gravity Cast Front Triangle
Fork: Rigid Aluminum Fork
Rear Spacing: 142mm
Fork Spacing: 100mm
Wheelset
Front Wheel: 27.5", 36 hole, Nutted axle, Schrader Valve
Rear Wheel: 27.5", 36 hole, Nutted hub drive motor, Schrader Valve
Tires: 27.5" x 2.1"
Ebike System
Motor: 36v, 500W
Motor Torque: 60Nm
Motor Power: 500W
Display: Aventon BC147
Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight: 8.7lbs
Controller: 36V, 24A
Throttle: Aventon LH Handlebar Mounted
Sensors: Double Sided Bottom Bracket Torque Sensor
Charger: 36V Output: 42V/ 4A
Charging time from 0% to 100%: 5 hours
Lights: Front and rear lights integrated
Brakes
Front Brake: Tektro Hydraulic w/ E-Cutoff
Rear Brake: Tektro Hydraulic w/ E-Cutoff
Front Brake Rotor: 180mm 6 bolt
Rear Brake Rotor: 180mm 6 bolt
Drivetrain
Rear Derailleur: Shimano Altus 8-Speed
Shifter: Shimano 8-Speed Trigger
Chain: 7/8 speed 122L
Cassette: 12-32T / 8 Speed Shimano CS HG200-8
Chainring: 48T
Chainring BCD: N/A
Crankset: 3pc, 170mm crank arm
Bottom Bracket: Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Pedals: 9/16" Composite Platform
Cockpit
Saddle: Aventon Saddle
Seatpost: Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Seatpost Clamp: 34.9mm
Handlebars: BMX Style Aluminum 31.8mm, 720mm
Stem: 31.8mm x 50mm, +15 Degree Rise
Grips: Aventon Ergonomic Comfort lock on grips
Headset: Sealed Bearing Headset
Included Accessories
Kickstand: Included, rear mount
Technical Overview
The Pace 4 ships as a Class II ebike, with pedal assist and throttle. The Pace will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I E-bike or throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your E-bike in light rain. It won't be harmed by spray from a wet road or raindrops. Your E-bike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your E-bike. *Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.*
