Level 4 ADV

$2,799.00
sold out

The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control. Powered by Aventon’s Ultro S motor with 100Nm of torque and paired with a Shimano CUES 10-speed drivetrain featuring Aventon’s E-Shifter and Autoshift technology, it delivers a natural pedaling feel and efficient power delivery across varied terrain. The ADV adds lightweight balance, responsive handling, and a premium feel, making it ideal for riders who want performance and sophistication without complexity. For those seeking the next level of connection, comfort, and control, the Level ADV represents the pinnacle of Aventon’s commuter design.

The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control. Powered by Aventon’s Ultro S motor with 100Nm of torque and paired with a Shimano CUES 10-speed drivetrain featuring Aventon’s E-Shifter and Autoshift technology, it delivers a natural pedaling feel and efficient power delivery across varied terrain. The ADV adds lightweight balance, responsive handling, and a premium feel, making it ideal for riders who want performance and sophistication without complexity. For those seeking the next level of connection, comfort, and control, the Level ADV represents the pinnacle of Aventon’s commuter design.

Frame:
Size:
Color:

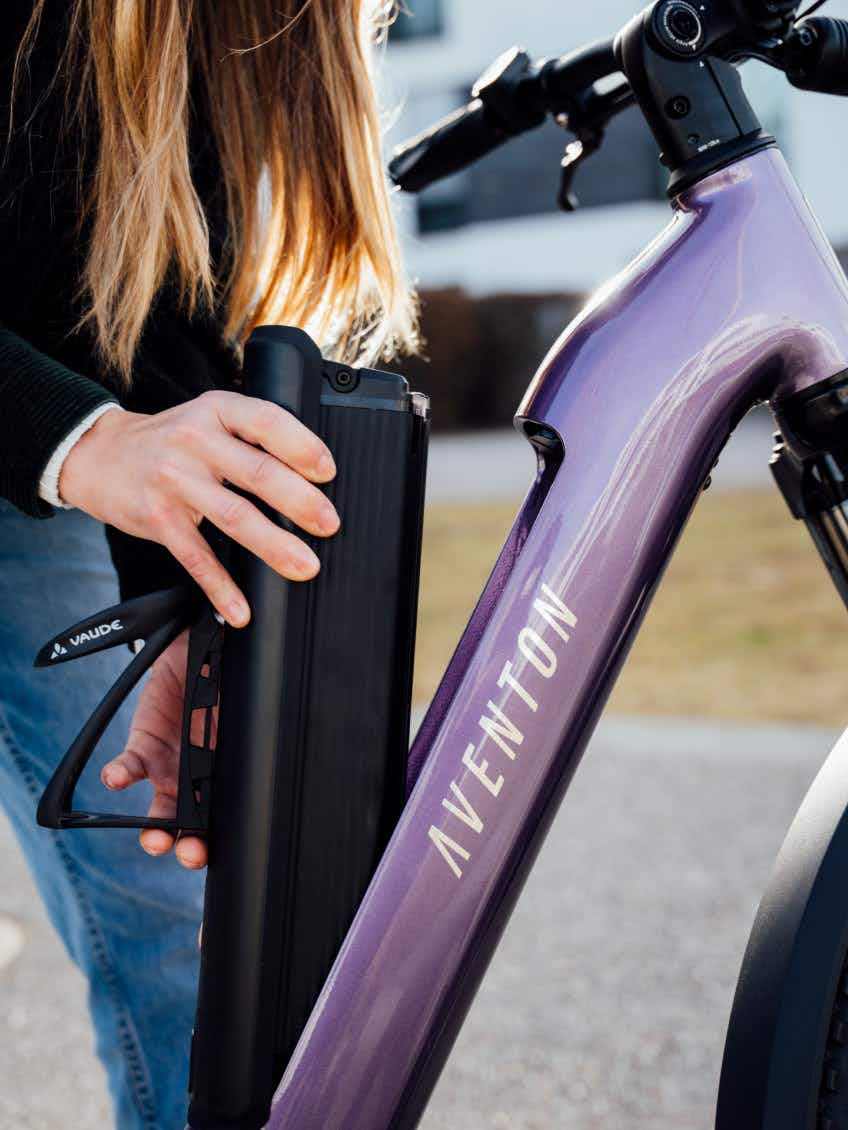

800Wh Keyless Removable Battery

Easy Battery Access

With the 800Wh keyless removable battery, not only can you ride further than ever, but you can easily remove and transport your battery for convenient charging or added security at the press of a button.

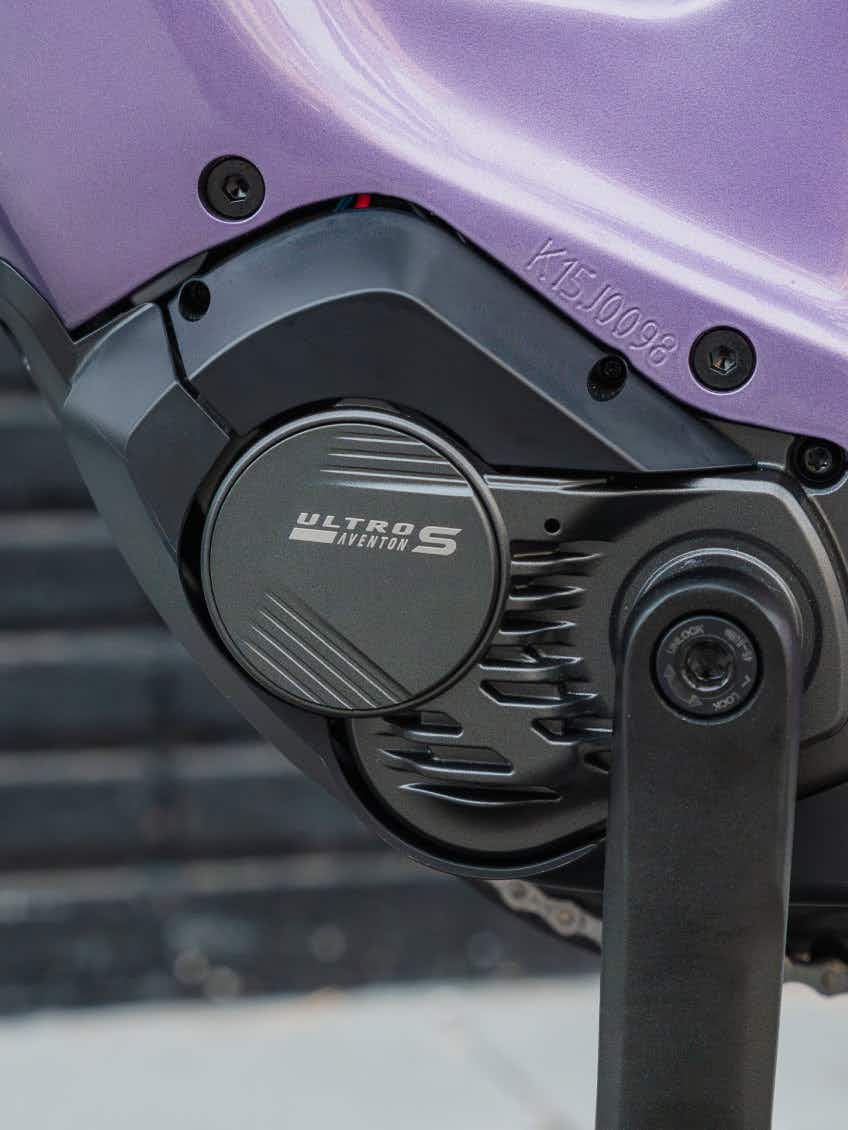

Ultro S Mid-Drive Motor (100Nm Torque)

Refined Power for Urban Adventure

The Ultro S mid-drive motor is positioned closer to the bike’s center of gravity for improved balance and handling. Unlike a hub motor, the mid-drive utilizes the bikes gearing to achieve superior climbing efficiency and extended battery range. With 100Nm of torque and Ride Tune customization, you'll experience a natural, smooth power ramp-up that feels like an extension of your own legs—making steep hills and city adventures feel effortless.

Up to 110 Miles Range

Take Your Adventure Even Further

Don't let your battery be the reason your rides are cut short. With up to 110 miles of range, the Level 4 ADV is built to handle all day adventures and long, demanding commutes with ease.

Specifications

General Info

Weight: 61lbs

Total Weight Limit: 300 lbs

Rider Height Step Over: Medium - 5'3"-5'10". Large - 5'10"-6'4". Extra Large - 6'4"-6'7"

Rider Height Step Thru: Regular - 4’11”-5’7”. Large - 5’7”-6’1”.

Ebike Class: Class 1 (Convertible to Class 2 and/or Class 3)

Water Resistance: Bike - IPX6 // Motor - IP67

Range: Up to 110 Miles

Safety Certifications: UL Safety Certified
UL 2849

Battery Safety Certifications: Certified to UL 2271

Frameset

Frame: 6061 Aluminum

Fork: 100mm Suspension Fork, 15x100mm

Rear Spacing: 135mm

Fork Spacing: 100mm

Wheelset

Front Wheel: 27.5" Double Wall Aluminum, 36H

Rear Wheel: 27.5" Double Wall Aluminum, 36H

Tires: Kenda K1052, 27.5x2.2"

Ebike System

Motor: Aventon Ultro S

Motor Torque: 100Nm

Motor Power: 750W Peak

Display: A280 Center Display

Battery: 800Wh

Battery Weight: 8.7lbs

Throttle: Compatible, Not Included

Charger: 42V 4A charger

Charging time from 0% to 100%: 5 hours

Lights: Front and rear lights integrated

Smart Features: Uphill Start Assist, E-Shift, AutoShift, and Ride Tune

Brakes

Front Brake: Tektro HD-M3120 2-Piston Hydraulic Disc Brakes

Rear Brake: Tektro HD-M3120 2-Piston Hydraulic Disc Brakes

Front Brake Rotor: 180mm 6 bolt

Rear Brake Rotor: 180mm 6 bolt

Brakes: Hydraulic

Drivetrain

Rear Derailleur: Shimano Cues 10-Speed

Chainring: 48T

Crankset: 165mm ISIS Splined

Pedals: 9/16" Composite Platform

Shifter: E-Shifter

Chain: 9/10/11 speed 126L

Cassette: Shimano Cues 10-Speed 11-39T

Cockpit

Saddle: Aventon Saddle

Seatpost: Aventon Suspension Post, 30.9mm, 50mm Travel, 400mm Length

Seatpost Clamp: 34.9mm

Handlebars: 31.8mm, 680mm Width, 30mm Rise

Grips: Aventon Lock-on grips
